Vanguard Style Scaffolding Frames

Vanguard Style Scaffold Frames

Specifications:
1.69" Or 1 11/16" O.D.
.095 Wall Thickness
First lock at 6"
from top of frame
45 Degree Hole Pattern

Mason Style Scaffold Frame

Walk Thru Style Scaffold Frame

"Vanguard" Style Frames

Please specify if you are matching existing scaffold and must have a specific numbers of rungs, lock style, etc

Item #


Space Between
Pins

Description

Weight (lbs)

Price

Frame Set
With
(2) Frames
(2) 7' Braces
(4) Connecting Pins and
(4) Spring Clips

Frame Set
With
(2) Frames
(2) 10' Braces
(4) Connecting Pins and
(4) Spring Clips

VG564L

Vertical Frame 5' Wide x 6' 4" High
Mason Style Frame
.090 WALL THICKNESS

$77

5' W x 6' 4" Tall
Frame Set
With
(2) Frames
(2) 7' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG564L-7/Set
$210

SALE

$180

5' W x 6' 4" Tall
Frame Set
With
(2) Frames
(2) 10' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG564L-10/Set
$225

SALE

$195

VG55L

Most Popular Size

Vertical Frame 5' Wide x 5' High
Mason Style Frame
.095 WALL THICKNESS

$69

5' W x 5' Tall
Frame Set
With
(2) Frames
(2) 7' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG55L-7/Set
$195

SALE

$165

5' W x 5' Tall
Frame Set
With
(2) Frames
(2) 10' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG55L-10/Set
$210

SALE

$180

VG54L

Vertical Frame 5' Wide x 4' High
Mason Style Frame
.095 WALL THICKNESS

$63

5' W x 4' Tall
Frame Set
With
(2) Frames
(2) 7' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG54L-7/Set
$183

SALE

$153

5' W x 4' Tall
Frame Set
With
(2) Frames
(2) 10' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG54L-10/Set
$198

SALE

$168

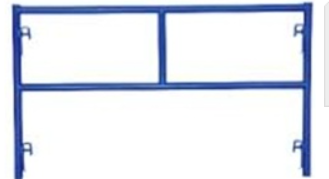

VG53L

Vertical Frame 5' Wide x 3' High
Mason Style Frame
.095 WALL THICKNESS

$59

5' W x 3' Tall
Frame Set
With
(2) Frames
(2) 7' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG53L-7/Set
$175

SALE

$145

5' W x 3' Tall
Frame Set
With
(2) Frames
(2) 10' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG53L-7/Set
$190

SALE

$160

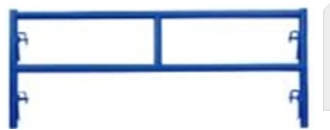

VG52L

Vertical Frame 5' Wide x 2' High
Mason Style Frame
.095 WALL THICKNESS

$53

5' W x 2' Tall
Frame Set
With
(2) Frames
(2) 7' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG52L-7/Set
$165

SALE

$135

5' W x 2' Tall
Frame Set
With
(2) Frames
(2) 10' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG52L-10/Set
$180

SALE

$150

Walk Thru Style Frames

VG564W

Vertical Frame 5' Wide x 6' 4" High
Walk Thru
Frame
.095 WALL THICKNESS

49.5

$79

5' W x 6'4" Tall
Frame Set
With
(2) Frames
(2) 7' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG564W-7/Set
$215

SALE

$185

5' W x 6'4" Tall
Frame Set
With
(2) Frames
(2) 10' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG564W-10/Set
$230

SALE

$200

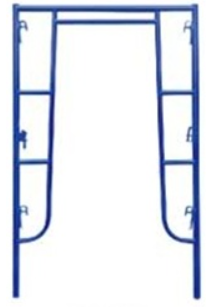

VG4264W

Vertical Frame 42" Wide x 6' 4" High
Walk Thru
Frame
.095 WALL THICKNESS

$75

42"W x 6'4"Tall
Frame Set
With
(2) Frames
(2) 7' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG4264W-7/Set
$208

SALE

$178

42"W x 6'4"Tall
Frame Set
With
(2) Frames
(2) 10' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG4264W-10/Set
$223

SALE

$193

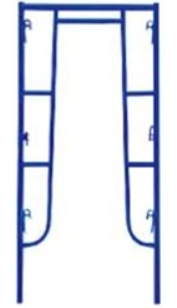

VG364W

Vertical Frame 36" Wide x 6' 4" High
Walk Thru
Frame
.095 WALL THICKNESS

$71

36"W x 6'4"Tall
Frame Set
With
(2) Frames
(2) 7' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG364W-7/Set
$198

SALE

$168

36"W x 6'4"Tall
Frame Set
With
(2) Frames
(2) 10' Braces
(4) Connecting Pins and
(4) Spring Clips

Item
VG364W-10/Set
$213

SALE

$183

Please specify if you are matching existing scaffold and must have a specific numbers of rungs, lock style, etc

Prices are normally correct but are subject to change. Please call for current pricing.

"VANGUARD" STYLE FRAME

ACCESSORIES

Item #

Description

Space Between Frames
"A"

Space Between Locks
"B"

Unit

Weight (lbs)

26 pieces or more

1 to 25 pieces

CB74
Standard
Size

7' x 4' Tubular Cross Brace
Fits our 5', 6'4" and 6'7" Frames

13.6

Please Call For Pricing

$20

CB71

7' x 1' Tubular Cross Brace
Fits our 2' Frames

11.7

Please Call For Pricing

$20

CB72

7' x 2' Tubular Cross Brace
Fits our 3' Frames

12.1

Please Call For Pricing

$20

CB73

7' x 3' Tubular Cross Brace
Fits our 4' Frames

13.5

Please Call For Pricing

$20

CB104
Standard
Size

10' x 4' Tubular Cross Brace
Fits our 5', 6'4" and 6'7" Frames

10'

14.6

Please Call For Pricing

$28

CB101

10' x 1' Tubular Cross Brace
Fits our 2' Frames

10'

16.8

Please Call For Pricing

$28

CB102

10' x 2' Tubular Cross Brace
Fits our 3' Frames

10'

17.6

Please Call For Pricing

$28

CB103

10' x 3' Tubular Cross Brace
Fits our 4' Frames

10'

14.4

Please Call For Pricing

$28

CB84

8' x 4' Tubular Cross Brace
Fits our 5', 6'4" and 6'7" Frames

15.4

Please Call For Pricing

$24

CB81

8' x 1' Tubular Cross Brace
Fits our 2' Frames

14.2

Please Call For Pricing

$24

CB82

8' x 2' Tubular Cross Brace
Fits our 3' Frames

14.1

Please Call For Pricing

$24

CB83

8' x 3' Tubular Cross Brace
Fits our 4' Frames

13.4

Please Call For Pricing

$24

CB44

4' x 4' Tubular Cross Brace
Fits our 5', 6'4" and 6'7" Frames

8.8

Please Call For Pricing

$18

CB54

5' x 4' Tubular Cross Brace
Fits our 5', 6'4" and 6'7" Frames

11.0

Please Call For Pricing

$18

CB64

6' x 4' Tubular Cross Brace
Fits our 5', 6'4" and 6'7" Frames

12.0

Please Call For Pricing

$20.00

Diagonals

DB75

7' X 5' Diagonal (Gooser) Brace
(Helps To Stabilize Frames)

For 5' wide frames with 7' cross braces

Please Call For Pricing

$34.00

DB105

10' X 5' Diagonal (Gooser) Brace
(Helps To Stabilize Frames)

For 5' wide frames with 10' cross braces

13.7

Please Call For Pricing

$38.00

CONNECTING PINS, LOCKING PINS

Item #

Description

Outside
Diameter

Lock Style

Unit

Weight (lbs)

Price

CP7

"VANGUARD" Style
9" Long
1-7/16" Diameter
Connecting Pin w 1" Collar
Item# CP7

1.02

$3.25

140A

Spring Retainer

.05

$0.75

140

Toggle Pin/
Hinge Pin

.13

$0.75

140B

Gravity Pin/
Pig Tail

.19

$0.85

140E

Span Pin/

.12

$1.25

Bases, Casters, Boards + Guard Rails

Item #	Description	Illustration	Unit	Weight (lbs)	Price
81G	24" Scaffolding Screw Jack w/Base Plate - Galvanized 1-3/8" Shaft		PC	11.30 lbs	$25.00
82	Scaffolding Screw Jack with Socket- Galvanized 1-3/8" Shaft Use with Base Plates or Casters		PC	11.50 lbs	$25.00
81SJ	Scaffolding Swivel Base Screw Jack 1-3/8" Shaft		PC	11.20 lbs	$28.00
81BP	Scaffolding Base Plate 5" x 5" For Use As A Stand Alone Base Or Can Be Used With Our 1-3/8" #82 Socket Jack		PC	2.20 lbs	$11.00
81S	Swivel Base Plate For Use As A Stand Alone Base Or Can Be Used With Our 1-3/8" #82 Socket Jack		PC	2.50 lbs	$15.00
81BPE	Base Plate Extension 1 3/8"		PC	3.80 lbs	$15.00
86	8" Heavy Duty Caster with 1- 3/8" Shank		PC	12.5 lbs	$39.50
B7	7' Aluminum with plywood Plank		PC	35 lbs	$165.00
A7	7' All Aluminum Plank		PC	35 lbs	$160.00
B10	10' Aluminum with plywood Plank		PC	42 lbs	$185.00
A10	10' All Aluminum Plank		PC	45 lbs	$225.00
GRPF	Female Guard Rail Post For Safway And Vanguard Style Frames 1.69" OD With 4 Fast Locks		PC	8 lbs	$20.00
GR5	Punched Hole Scaffolding Guard Rail 5' Fits 5' wide scaffolding frames	Fits all above Frames	PC	4.3 lbs	$10.00
GR7	Punched Hole Scaffolding Guard Rail 7' Fits 7' wide scaffolding frames	Works with 7' Cross Braces	PC	5.8 lbs	$12.00
GR10	Punched Hole Scaffolding Guard Rail 10' Fits 10' wide scaffolding frames	Works with 10' Cross Braces	PC	9.8 lbs	$18.50

Slide
Lock Style

Call us to order

1-888-97DEPOT (1-888-973-3768)

Please call if you do not see the size you need.

Prices are normally correct but are subject to change. Please call for current pricing.

COPYRIGHT 2002-2024 SCAFFOLDINGDEPOT.COM
All weights are approximate. All pricing is subject to change.
Manufacturer and Colors may change

.Please note that it is imperative for all workers using these Scaffolding parts and/or Scaffolding accessories to be fully trained and informed in the use of these Scaffolding materials. You may visit our safety page by clicking here to find sources of training and instruction in the use of scaffolding, etc.
